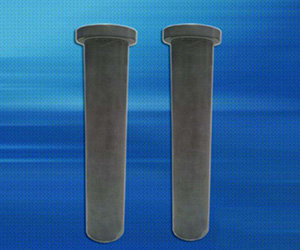

SC0911 Silicon Nitride Welding Rod, Si3N4

Catalog No.	SC0911
Size	Diameter: 1~20mm
Material	Si3N4 Ceramic
Purity	97%~99%
Density	3.44 g/cm3

Silicon Nitride Welding Rod Description

silicon nitride welding rod Silicon nitride welding rod is a man-made compound synthesized through several different chemical reaction methods. Due to the even performance in high temperatures, Si3N4 is a commonly used ceramic material in the metallurgical industry. It has excellent thermal shock resistance due to the microstructure. The creep and oxidation resistance of Si3N4 is also superior, its low thermal conductivity and high wear resistance also make it an outstanding material that can withstand conditions of most industrial applications.

There are 5 different methods to produce Silicon Nitride including SRBSN, GPSN, HPSN, HIP-SN and RBSN, make the application and working material different slightly. In these 5 methods of production, GPSN is most commonly used to produce Si3N4 components. You can find other silicon nitride Si3N4 ceramic parts here.

Silicon Nitride Welding Rod Specifications

GPSN

Property
Color	Grey
Mechanical Properties
Density	3.21 g/cm3
Compressive Strength	3000 MPa
Flexural Strength	800 MPa
Weibull-Modulus m	15
Fracture Toughness KIc	6.5 MPa m^1/2
Young’s Modulus E	320 GPa
Poisson Ratio	0.28
Hardness Vickers (HV 1)	16 GPa
Thermal Properties
Maximum Temperature (Inert Gas)	1200°C
Maximum Temperature (Air)	1100°C
Thermal Conductivity @ 20°C	28 W/mK
Thermal Conductivity @ 1000°C	16 W/mK
Thermal Expansion (20–100°C)	2*10-6/K
Thermal Expansion (20–1000°C)	3.510-6/K
Thermal Shock parameter R1	600 K
Thermal Shock parameter R2	15 W/mm
Electrical Properties
Resistivity at 20°C	10^12 Ωcm
Resistivity at 800°C	10^7 Ωcm
Dielectric constant	6 MHz
