BN0948 Boron Nitride Plate, BN Plate

Boron Nitride Plate Properties

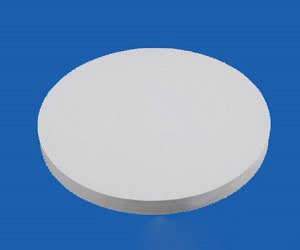

High Purity Boron Nitride Plates Discs

Compound Formula	BN
Molecular Weight	24.82
Appearance	White
Melting Point	2973 °C
Density	2.1 g/cm3 (h-BN); 3.45 g/cm3 (c-BN)
Solubility in H2O	Insoluble
Refractive Index	1.8 (h-BN); 2.1 (c-BN)
Electrical Resistivity	13 to 15 10x Ω-m

Boron Nitride Plate Description

Similar with graphite, boron nitride ceramic has great strength at high temperature. High purity PBN products have even better mechanical properties. As the solid material is formed by the CVD process, the density of the products could almost reach the theoretical value. PBN products provided by China Special Ceramic Parts, Inc. also have great thermal shock resistance. Plates of PBN could be heated to more than 2000 degrees and dropped into the water without getting broken.

Boron Nitride Plate Specifications

Item		value	Unit
lattice constant		a:2.504×10^-10 c:6.692×10^-10	μ m
density		2.0-2.19	g/cm³
resistivity		3.11×10¹¹	Ω·cm
tensile strength（ab）		153.86	N/mm²
bend strength	c	243.63	N/mm²
bend strength	ab	197.76	N/mm²
elastic modulus		235690	N/mm²
thermal conductivity		“a” direction “c” direction
	(200℃)	60 2.60	W/m·k
	(900℃)	43.70 2.80	W/m·k
dielectric strength（at room temperature）		56	KV/mm

Please notice, as a CVD material, pyrolytic boron nitride sheets could not be very thick. The largest thickness available for our PBN sheet is 0.2". We also provide PBN crucibles, tubes, and heating elements!

Boron Nitride Plate / Disc Applications

Boron Nitride ceramic from China Special Ceramic Parts, Inc. can withstand high temperature in the high vacuum environment, plus it has excellent corrosion resistance and electrical resistance. Thus, Boron Nitride ceramic product is an ideal choice in a wide range of industries, such as:
-Electric insulators in the vacuum system
-Boron Nitride components for PVD, MOCVD, MBE system.
-Nozzles for nonferrous metals metallurgy industry
-Spacers for glass melting
-Insulators for high-temperature furnace

Packing Service

ACM’s High Purity Boron Nitride Plates/Discs are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
