| Compound Formula | SiC |
| Molecular Weight | 40.1 |
| Appearance | Black |
| Melting Point | 2,730° C (4,946° F) (decomposes) |
| Density | 3.0 to 3.2 g/cm3 |
| Electrical Resistivity | 1 to 4 10x Ω-m |
| Poisson’s Ratio | 0.15 to 0.21 |
| Specific Heat | 670 to 1180 J/kg-K |
Silicon carbide (SiC) is a lightweight ceramic material with high strength properties comparable to diamond. It has excellent thermal conductivity, low thermal expansion and good wear resistance. Silicon carbide is an excellent ceramic material for applications requiring high temperature, good erosion and abrasive resistance. Consequently, it is useful in a variety of applications including spray nozzles, shot blast nozzles and cyclone components.

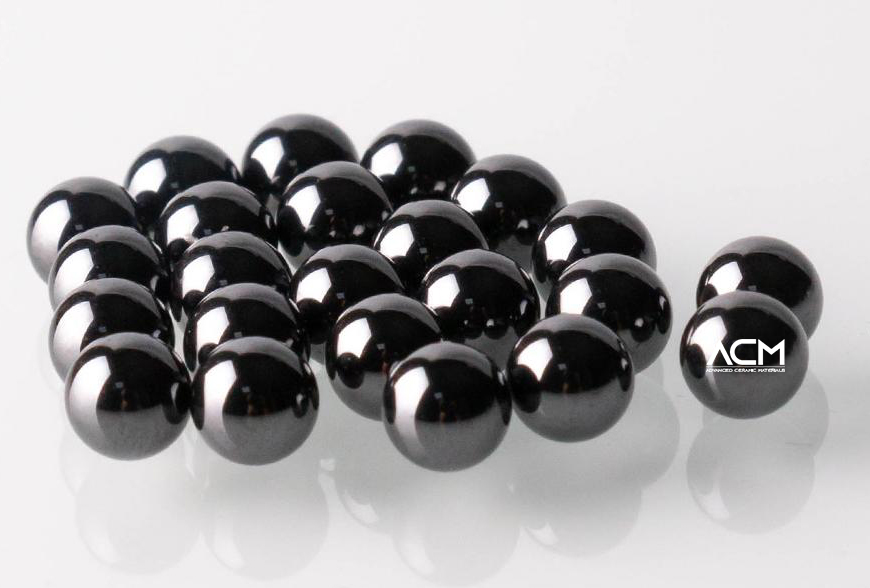

China Special Ceramic Parts, Inc.(CSCPI) produce sintered SiC balls, reaction bonded SiC balls and recrystallized SiC balls. Our recrystallized SiC products have a high purity, while our reaction bonded and sintered silicon carbide balls have a high mechanical strength. Our silicon carbide balls possess good wearability, a low thermal expansion coefficient, extreme corrosion resistance, high hardness and self-lubricating properties.
| Recrystallized SiC | Sintered SiC | Reaction Bonded SiC | |
| Purity of Silicon Carbide | 99.5% | 98% | >88% |
| Max. Working Temp. (`C) | 1650 | 1550 | 1300 |
| Bulk Density (g/cm3) | 2.7 | 3.1 | >3 |
| Appearance Porosity | <15%> | 2.5 | 0.1 |
| Flexural strength (MPa) | 110 | 400 | 380 |
| Compressive strength (MPa) | >300 | 2200 | 2100 |
| Thermal expansion (10^-6/`C) | 4.6 (1200`C) | 4.0 (<500> | 4.4 (<500> |
| Thermal conductivity (W/m.K) | 35~36 | 110 | 65 |
| Main characteristics | High temp. High resistance. High purity |
Fracture Toughness | Chemical Resistance |
– Silicon carbide is an ideal material for sealing rings and bearings.
– Silicon carbide is frequently used in semiconductor and coating industries.
– Special bearings and pumps, electric switches and sensors, medical instruments. They are used in automotive, aviation and aerospace, naval, petroleum, chemical and electronic industry.
ACM’s SiC ceramic products are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Submit your review | |
Appeared powdery on arrival, but don't be alarmed by this. They are very durable non-powdery. Did a variety of test on strength durability.
- high impact test
- drop test
- velocity impact test
- stress test
These are as strong as steel (or at least close enough)
