SC0894 Silicon Carbide Seal Ring, SiC Seal Ring

Silicon Carbide Seal Ring Properties

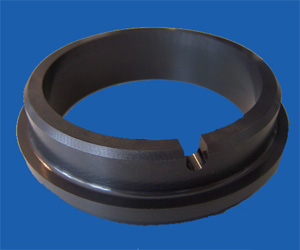

Silicon Carbide Seal Ring

Compound Formula	SiC
Molecular Weight	40.1
Appearance	Black
Melting Point	2,730° C (4,946° F) (decomposes)
Density	3.0 to 3.2 g/cm3
Electrical Resistivity	1 to 4 10x Ω-m
Poisson’s Ratio	0.15 to 0.21
Specific Heat	670 to 1180 J/kg-K

Download Silicon Carbide SDS

Silicon Carbide Seal Ring Description

Silicon carbide (SiC) is a lightweight ceramic material with high strength properties comparable to diamond. It has excellent thermal conductivity, high mechanical strength, low thermal expansion, chemical resisitance and thermal shock resisitance. Silicon carbide is an excellent ceramic material for applications requiring good erosion and abrasive resistance. Consequently, it is useful in a variety of applications including spray nozzles, shot blast nozzles and cyclone components.

Silicon carbide materials are ideal for sealing rings and bearings. Silicon carbide seal rings have excellent corrosion resistance, great mechanical strength under high temperatures and great wear resistance. We supply multiple sizes of silicon carbide rings as well as other SiC parts.

Silicon Carbide Seal Ring Specifications

China Special Ceramic Parts, Inc. (CSCPI) supplies silicon carbide seal rings with different materials to fulfill various requirements of our customers. We provide flat silicon carbide rings, single and double stepped silicon carbide rings, and custom manufactured silicon carbide rings with complex shapes.

Type	Material	Description
Sintered Silicon Carbide (S-SiC)	SMB1 Basic pure SiC	Purity of SiC > 98% Hv: 26 GPa
	SMG1 Graphite impregnated	15%~20% content of Graphite
	SMP1 Porous	Better friction resistance
Reaction Bonded Silicon Carbide (RB-SiC)	SMB2 Basic SiC	Purity of SiC > 88%
Reaction Bonded Silicon Carbide (RB-SiC)	SMG2 Graphite impregnated	20%~30% content of Graphite

Silicon Carbide Seal Ring Applications

-Semiconductor and coating.
-Continuous-flow reactors, heat exchangers, etc.
-Mechanical seals, bearings, thrust bearings, etc.
-Mirrors for industrial laser systems.

Packing Service

ACM’s silicon carbide seal rings are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
