BN1001 Boron Nitride Gasket, BN Gasket

Boron Nitride Gasket Properties

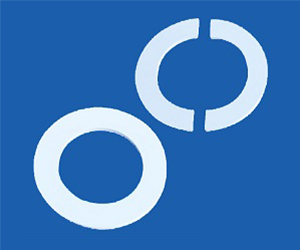

Boron Nitride Gasket Seal

Catalog No.	BN1001
Compound Formula	BN
Appearance	White
Melting Point	2973 °C
Density	2.1 g/cm3 (h-BN); 3.45 g/cm3 (c-BN)
Purity	99%
Refractive Index	1.8 (h-BN); 2.1 (c-BN)
Electrical Resistivity	13 to 15 10x Ω-m

Download Boron Nitride Gasket SDS

Boron Nitride Gasket Description

Boron Nitride Gasket is made of boron nitride (BN) — a chemical compound with equal numbers of boron and nitrogen atoms. The hexagonal form (HBN) corresponding to graphite is the softest and most stable form among BN polymorphs, and is therefore used as a lubricant and an additive to cosmetic products. The cubic (CBN) variety analogous to diamond has a high hardness which is inferior only to diamond. The rare wurtzite BN (WBN) modification is similar to lonsdaleite, and it may even be harder than CBN.

Boron Nitride Gasket Applications

– Boron Nitride components for PVD, MOCVD, MBE system.
– Insulators for high-temperature furnace
– Feedthrough for high voltage equipment
– Spacers for glass melting
– Boron Nitride parts for ion injection equipment

Boron Nitride Gasket Available Materials

Material	Description	Availability
BN99	Hot pressed at high temperature (1900℃). Excellent corrosion resistance and thermal conductivity. Limited wear resistance Self-bonded and high purity(>99%)	Machinable Blanks Finished Parts
BNBO	General purpose material Bonded by boric oxide	Finished Parts
BNCB	Calcium borate bonded boron nitride Enhanced moisture resistance	Finished Parts
BN60	BN 60%, SiO2 40%	Finished Parts
BN40	BN 40%, SiO2 60%	Finished Parts
ZSBN	BN-45%, Zr2O3 45%	Finished Parts

Specifications of BN99 and ZSBN for your reference!

Packing Service

ACM’s Boron Nitride Gasket is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
